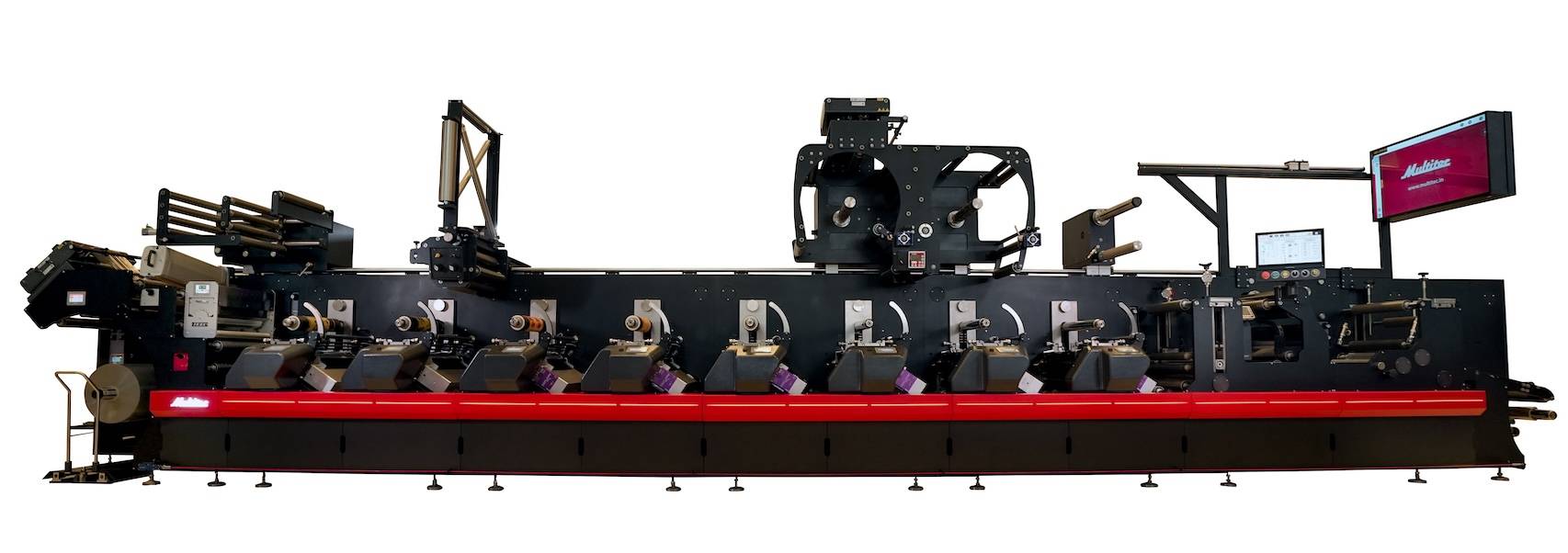

S3S

The S3S features a sleeve system with servo driven print mandrels, chilled impression and anilox cylinders to achieve ultimate precision and print quality.

Gearless print units ensure zero backlash and no gear marks. An 8-color press integrates 41+ servo motors across the print, die-cut, infeed, outfeed,unwind, and rewind modules for precise motion control. Intelligent systems enable automatic on-the-fly pre-registration and perfect register stability even during acceleration and deceleration.

Download Brochure

Compare Products

  • Three Servos per unit

    Gearless direct servo driven print, anilox & impression

  • Flawless Print Quality
    Print difficult jobs on any material

  • Ultimate print quality

    Zero backlash & no gear marks

  • Unbeatable register

    Perfect register stability

  • Multiple drying options
    UV, LED UV, Hot air for WB inks, extended dryers for solvent inks – all options available.

  • Short web path
    Just 1.5m between print units. Less web – less wastage – quick setup.

  • Rail system for mounting accessories
    Rail system to mount cold foil, turnbar, rotary screen and other accessories movable throughout the press length.

  • Large print and die repeat
    Print sleeves from 9.5″-32″ can be accommodated. Large 24″ die repeats also possible.

  • Modular construction
    Assembled to your specifications to meet your needs. Additional modules can be added as your business and market opportunities grow and change.

  • Energy efficient UV systems
    Energy saving UV curing systems are mounted on the chill drums.

Specifications

Substrate Range 12 microns – 400 microns
Max Speed 200m/min
Web Width 450mm/530mm/610mm/ 670mm
Control System Gearless full servo with three servo drives per print station
Max Roll Capacity Unwind: 1000mm Rewind:800mm Waste:700mm
Print repeat 9.5” – 32” stepless (in mm or in inch)
Web Path per unit 1.5m
Pre-Registration Standard
Auto-Registration Standard
Remote Diagnostics Standard
Job Storage Standard
