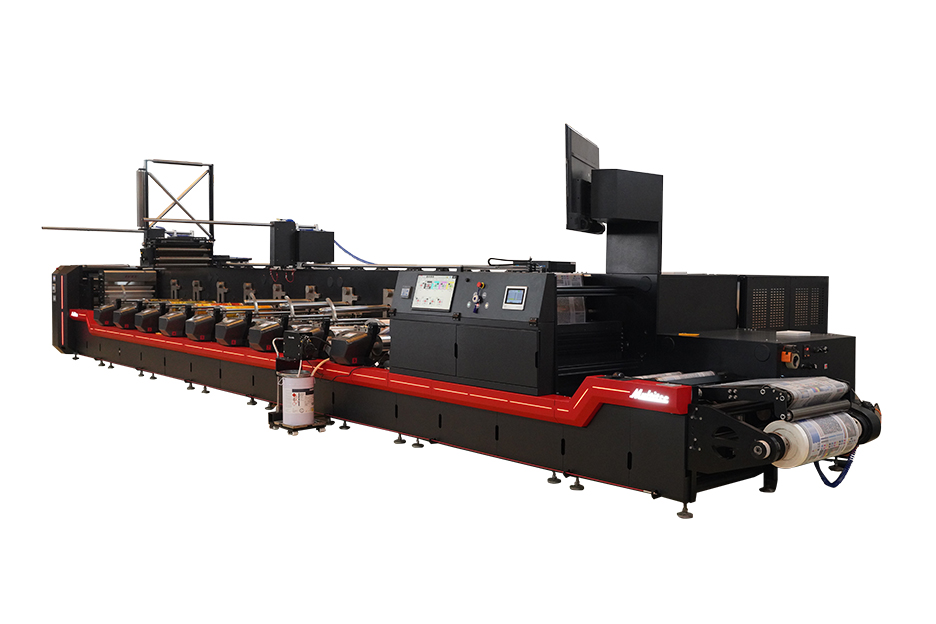

S3S Mid-web

The S3S midweb pressfeatures a sleeve system with servo driven print mandrels, chilled impression and anilox cylinders to achieve ultimate precision and print quality.

Gearless print units ensure zero backlash and no gear marks. An 8-color press integrates 41+ servo motors across the print, infeed, outfeed, unwind, and rewind modules for precise motion control. Intelligent systems enable automatic on-the-fly pre-registration and perfect register stability even during acceleration and deceleration.

Download Brochure

Compare Products
  • Multiple Servos per unit

    Gearless direct servo driven print, anilox & impression

  • Flawless Print Quality
    Print difficult jobs on any material

  • Ultimate print quality

    Zero backlash & no gear marks

  • Unbeatable register

    Perfect register stability

  • Multiple drying options
    UV, LED UV, extended dryers for solvent inks – all options available.

  • Short & Medium run wonder
    Perfect from 10 kgs – 500kgs for flexible packaging

  • Gravure like quality, digital type agility
    Print precise and vibrant prints that match gravure quality. Digital like agility for job change

  • Heavy duty structure
    An extremely rigid and heavy structure makes the press vibration free

  • Large print repeats
    Print sleeves from 12″-32″ can be accommodated.

  • Short web path
    Just 1.5m between print units. Less web – less wastage – quick setup.

  • Energy efficient UV systems
    Energy saving UV curing systems are mounted on the chill drums.

Specifications

Substrate Range 10 microns – 500 microns
Max Speed 200m/min
Web Width 670mm
Control System Gearless full servo with three servo drives per print station
Max Roll Capacity Unwind: 1000mm Rewind:1000mm
Print repeat 12” – 32” stepless (in mm or in inch)
Web Path per unit 1.5m
Pre-Registration Standard
Auto-Registration Standard
Remote Diagnostics Standard
Job Storage Standard
