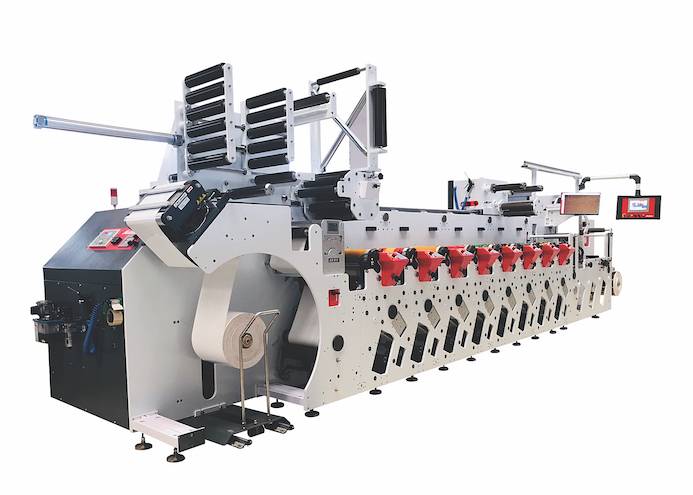

E3 is a shaftless full servo narrow web flexo press for printing flexible packaging and self-adhesive labels.
All print units, infeed and outfeed are shaftless servo driven and ensure that average down time is cut to a minimum, change over times are reduced and the highest graphic quality can be profitably delivered whether short or long run. E3’s automation technology can improve productivity, reduce waste and increase print quality whilst making your company less dependent on highly skilled operators. The opportunity for label convertors to diversify into new growth markets such as sleeves, wrap around labels, pouches and sachets can be addressed by the E3’s automation package.
- Full servo
Shaftless full servo for excellent register throughout the speed range
Sensor based electronic pre-register ensures that all print units are set to correct home positions without wasting any material.
Electronic final register
All print units have a HMI for register settings and the register settings can be done with the end-of-press HMI too.
Clean and clear view of the print unit for quick and fast job change.
Quick-change print cylinder
“No rods” print cylinder change within seconds.
No pressure settings
No need to set pressure for every job. One setting does it all.
A separate chilled drum with UV has been incorporated to enhance gloss levels and give sufficient time to the ink lay down to settle before it enters the UV.
Short web path
Just 1.8m between print units. Less web – less wastage – quick setup.
Rail system for mounting accessories
Rail system to mount cold foil, turnbar, rotary screen and other accessories movable throughout the press length.
24″ print and die repeat
Print cylinders from 7.5″-24″ can be accommodated. Large 24″ die repeats also possible.
Assembled to your specifications to meet your needs. Additional modules can be added as your business and market opportunities grow and change.
Energy efficient UV systems
Energy saving UV curing systems are mounted on the chill drums.
|Substrate Range||10 microns – 350 microns (30 GSM – 280 GSM)|
|Control System||Shaftless full servo|
|Max Roll Capacity||Unwind: 1000mm Rewind:800mm Waste:750mm|
|Print repeat||7.5” – 24” (9”-24” for 450mm) in steps of 1/8”|
|Web Path Distance||Between Prints UV: 1.8m|
