S1

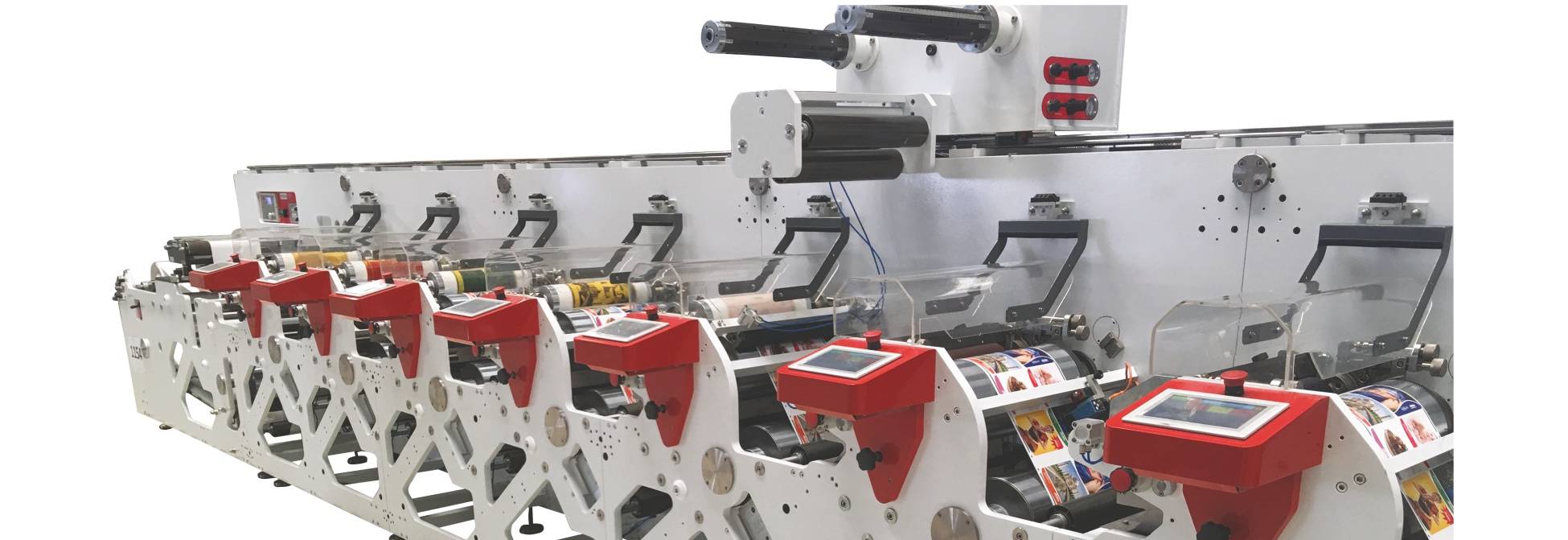

S1 is a shaftless full servo narrow web flexo press for printing flexible packaging and self-adhesive labels.

All print units, infeed and outfeed are shaftless servo driven and ensure that average down time is cut to a minimum, change over rates are reduced and the highest graphic quality can be profitably delivered whether short or long run. S1’s automation technology can improve productivity, reduce waste and increase print quality whilst making your company less dependent on highly skilled operators. The opportunity for label convertors to diversify into new growth markets such as sleeves, wrap around labels, pouches and sachets can be addressed by the S1’s automation package.

Download Brochure

Compare Products
  • Full servo
    Shaftless full servo for excellent register throughout the speed range

  • Electronic pre-register
    Sensor based electronic pre-register ensures that all print units are set to correct home positions without wasting any material.

  • Electronic final register
    All print units have a HMI for register settings and the register settings can be done with the end-of-press HMI too.

  • Open access
    Clean and clear view of the print unit for quick and fast job change.

  • Quick-change print cylinder
    “No rods” print cylinder change within seconds.

  • No pressure settings
    No need to set pressure for every job. One setting does it all.

  • Chilled drums
    A separate chilled drum with UV has been incorporated to enhance gloss levels and give sufficient time to the ink lay down to settle before it enters the UV.

  • Short web path
    Just 1.4m between print units. Less web – less wastage – quick setup.

  • Rail system for mounting accessories
    Rail system to mount cold foil, turnbar, rotary screen and other accessories movable throughout the press length.

  • 24″ print and die repeat
    Print cylinders from 7.5″-24″ can be accommodated. Large 24″ die repeats also possible.

  • Modular construction
    Assembled to your specifications to meet your needs. Additional modules can be added as your business and market opportunities grow and change.

  • Energy efficient UV systems
    Energy saving UV curing systems are mounted on the chill drums.

Specifications

Substrate Range 25 microns – 320 GSM
Max Speed 150m/min
Web Width 370mm/450mm
Control System Shaftless full servo
Max Roll Capacity Unwind: 1250mm Rewind:800mm Waste:700mm
Print repeat 7.5” – 24” (9”-24” for 450mm) in steps of 1/8”
Web Path Distance Between Prints UV: 1.4m
Pre-Registration Standard
Auto-Registration Optional
Remote Diagnostics Standard
Job Storage Standard
