Overview
Compact Footprint. Full Capability.

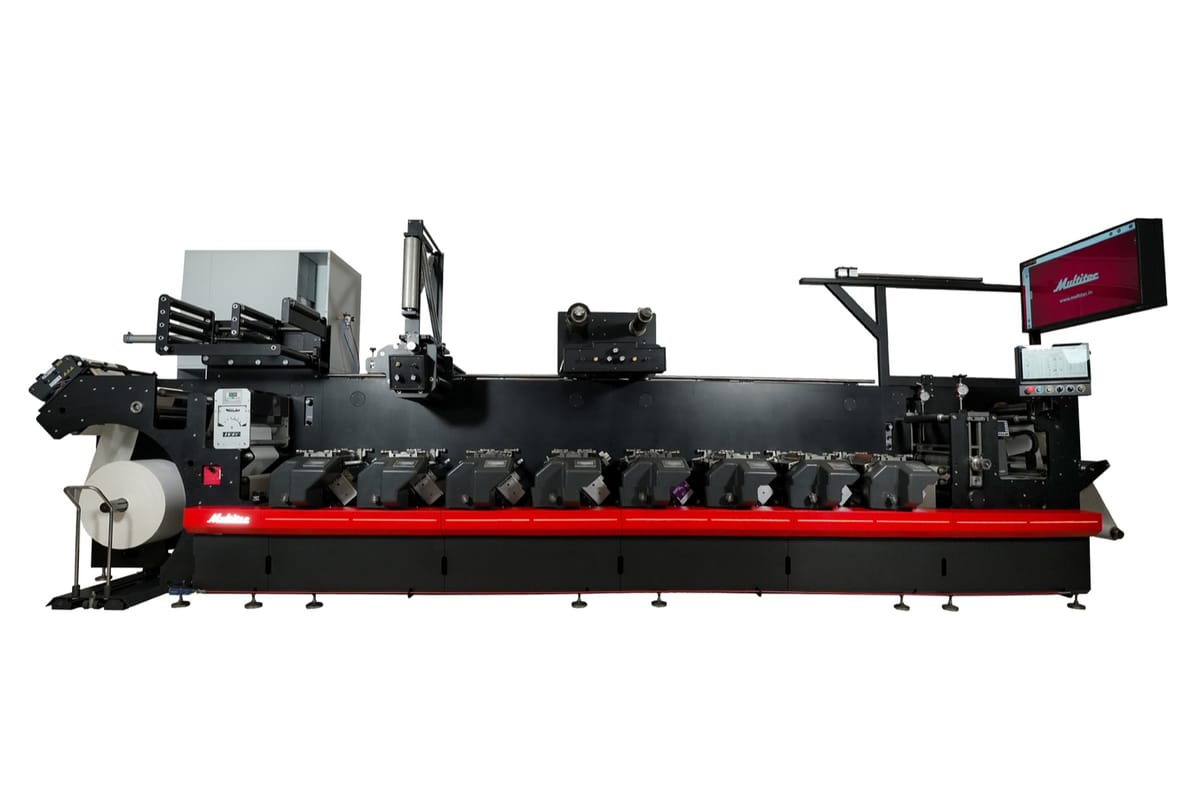

The S1 Compact brings the proven S1 platform into a smaller footprint. With the signature Multitec quality and full-servo control, this is a press that fits within a tighter floor space without giving up capability.
Ideal For
Self-Adhesive Labels
Specifications
Technical
Data
Configurations vary by web width and application. Talk to our team for a tailored build sheet.
- Max Speed
- 150 m/min
- Web Width
- 370 mm
- Substrate Range
- 12 – 350 microns
- Print Repeat
- 7.5” – 24” in steps of 1/8”
- Control System
- Servo · 1 servo drive per print station
- Max Roll Capacity
- Unwind 1000 mm · Rewind 800 mm · Waste 700 mm
- Web Path / Unit
- 1.4 m
- Pre-Registration
- Standard
- Auto-Registration
- Optional
- Remote Diagnostics
- Standard
FAQ
S1 Compact, answered
What is the web width of the Multitec S1 Compact?
The Multitec S1 Compact runs a web width of 370 mm.
How fast does the Multitec S1 Compact run?
The S1 Compact runs at a maximum speed of 150 m/min.
What substrates can the Multitec S1 Compact print?
It handles a substrate range of 12 – 350 microns, across applications such as Self-Adhesive Labels.
How many servo drives does the S1 Compact have per print station?
The S1 Compact uses 1 servo drive per print station, with full gearless-servo control.
What print repeat range does the S1 Compact offer?
Print repeat range: 7.5” – 24” in steps of 1/8”.
What is the Multitec S1 Compact used for?
The S1 Compact is a narrow web flexographic press for Self-Adhesive Labels.
Where is the Multitec S1 Compact manufactured?
Every Multitec S1 Compact is engineered and built at Multitec's facility in Faridabad, Haryana, India, and supported for life across 50+ countries.
