S2

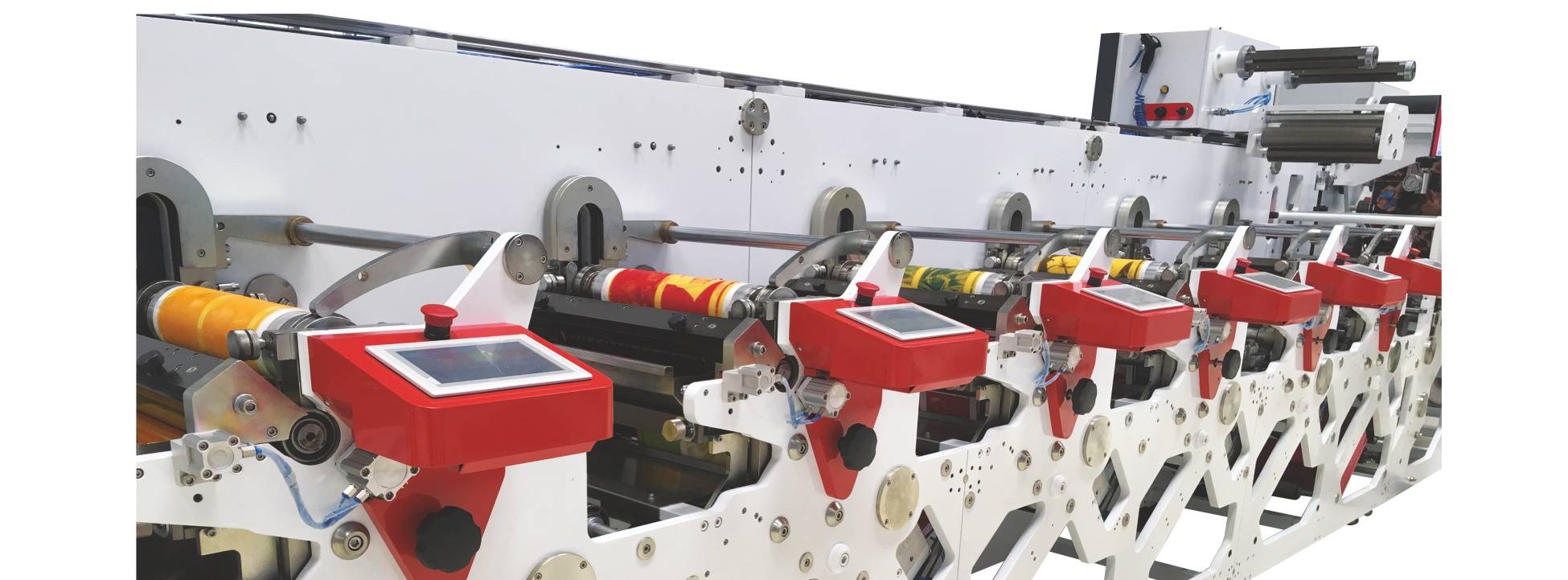

S2 is a shaftless dual servo narrow web flexo press with a sleeve system for printing flexible packaging and self-adhesive labels.

All print units, infeed and outfeed are shaftless servo driven. The print sleeve and the impression roll are both driven by independent servo motors. The print sleeve is gearless – there is no gear contact between the printing sleeve and the impression roll. This ensures the highest graphic quality and an extremely versatile repeat range. The opportunity for label convertors to diversify into new growth markets such as sleeves, wrap around labels, pouches and sachets can be addressed by the S2’s automation package.

Download Brochure

Compare Products
  • Dual Servo
    Shaftless dual servo – one on the gearless print sleeve and one on the impression.

  • Electronic pre-register
    Sensor based electronic pre-register ensures that all print units are set to correct home positions without wasting any material.

  • Open Access
    Clean and clear view of the print unit for quick and fast job change.

  • Quick-change print sleeve
    Gearless print sleeve ensures the highest print quality and gives repeat flexibility.

  • No pressure settings
    No need to set pressure for every job. One setting does it all.

  • Chilled drums
    A separate chilled drum with UV has been incorporated to enhance gloss levels and give sufficient time to the ink lay down to settle before it enters the UV.

  • Short web path
    Just 1.8m between print units. Less web – less wastage – quick setup.

  • Rail system for mounting accessories
    Rail system to mount cold foil, turnbar, rotary screen and other accessories movable throughout the press length.

  • 24″ print and die repeat
    Print sleeves from 9″-24″ can be accommodated. Large 24″ die repeats also possible.

  • Modular construction
    Assembled to your specifications to meet your needs. Additional modules can be added as your business and market opportunities grow and change.

  • Energy efficient UV systems
    Energy saving UV curing systems are mounted on the chill drums.

Specifications

Substrate Range 25 microns – 320 GSM
Max Speed 150m/min
Web Width 370mm/450mm
Control System Shaftless full servo with twin servo drives per print station
Max Roll Capacity Unwind: 1250mm Rewind:800mm Waste:700mm
Print repeat 9” – 24” stepless (in mm or in inch)
Web Path Distance Between Prints UV: 1.8m
Pre-Registration Standard
Auto-Registration Optional
Remote Diagnostics Standard
Job Storage Standard
