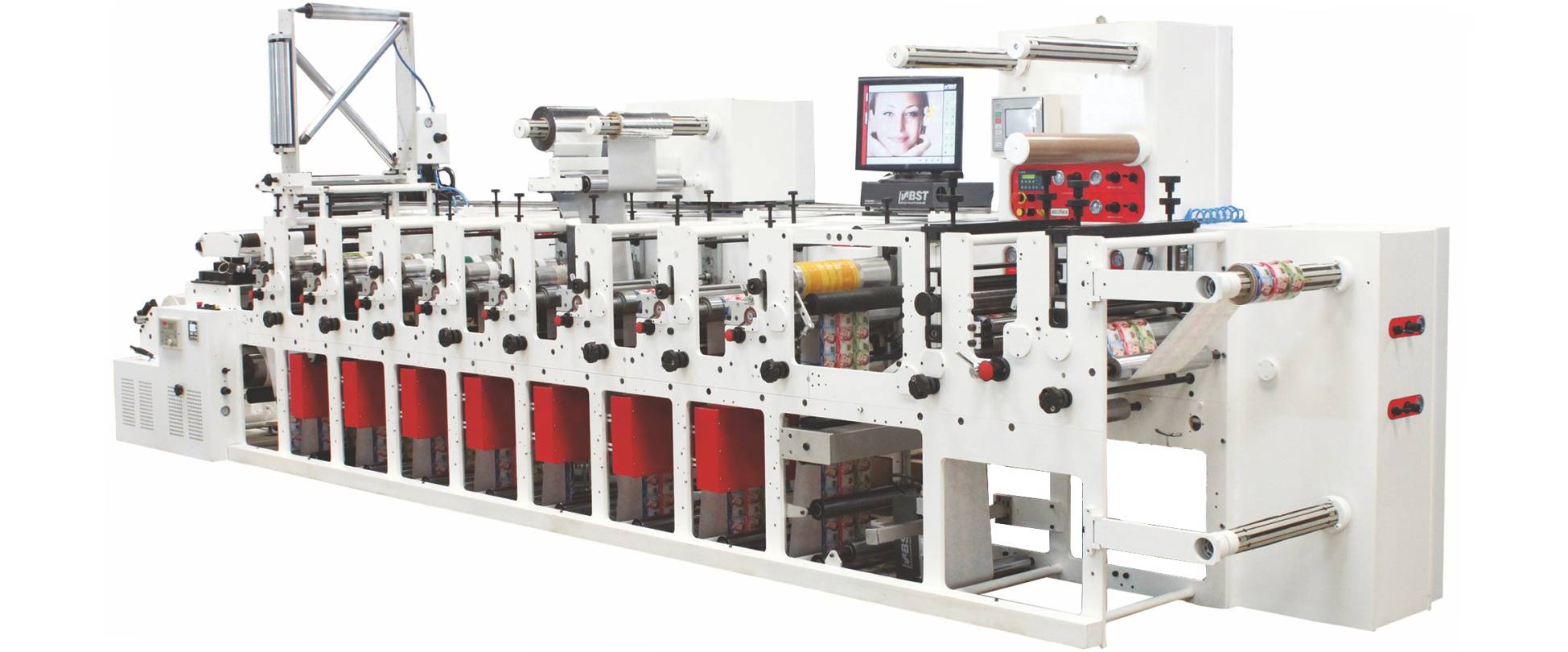

EX is a compact narrow web flexo press for printing self-adhesive labels.

The EX press is constructed to provide a superior foundation for quality printing and converting. It has full dual side frames to create a solid and rigid structure not attainable with partial frames supported on sheet metal legs or with cantilevered designs. This press can be assembled to your specifications in various widths. A full range of options further enhances the versatility of the EX label press and its ability to handle a variety of applications on a broad range of materials.

Download Brochure

Compare Products
  • Box frame rigidity
    Full frames construction create a rigid structure for reliable durability.

  • Robust precision gearboxes
    Enclosed gearboxes for smooth, consistent power transmission for exact registration and consistent ink transfer.

  • 360 degree circumferential register
    360 degrees circumferential register control at individual stations for fast and limitless circumferential register.

  • Torque tube lineshaft
    Zero backlash steel couplings and tubular lineshaft provide consistent power transmission.

  • Heavy duty converting module
    Dual steel frames, hardened anvil rolls and support rolls provide strength and rigidity for consistent die cutting. Air clutches with precision regulators on both the capstan and waste rewind give consistent and repeatable control for high-speed waste matrix stripping.

  • Precise web control
    Closed loop constant tension and variable infeed provides superior web control for exact registration.

  • Independent 2 way print adjustment
    Quick and precise setting of print impression independent of plate to anilox adjustment.

  • 21″ print and die repeat
    Provides flexibility to layout jobs for optimum productivity.

  • Conventional water based & UV flexo
    Designed for UV Flexo option while maintaining conventional capability.

  • Rotary die cutting
    Rotary cutting for high speed, long run applications.

  • Quick setup anilox adjustment
    Unlike many other machines, EX has a unique anilox adjustment for “plate to impression” and “plate to anilox” setting.


Substrate Range 30 GSM – 280 GSM
Max Speed 150m/min
Web Width 330mm/450mm
Control System Line shaft connected to precision gearboxes
Max Roll Capacity Unwind: 1000mm Rewind:800mm Waste:700mm
Print repeat 7.5” – 21” (9”-21” for 450mm) in steps of 1/8”
